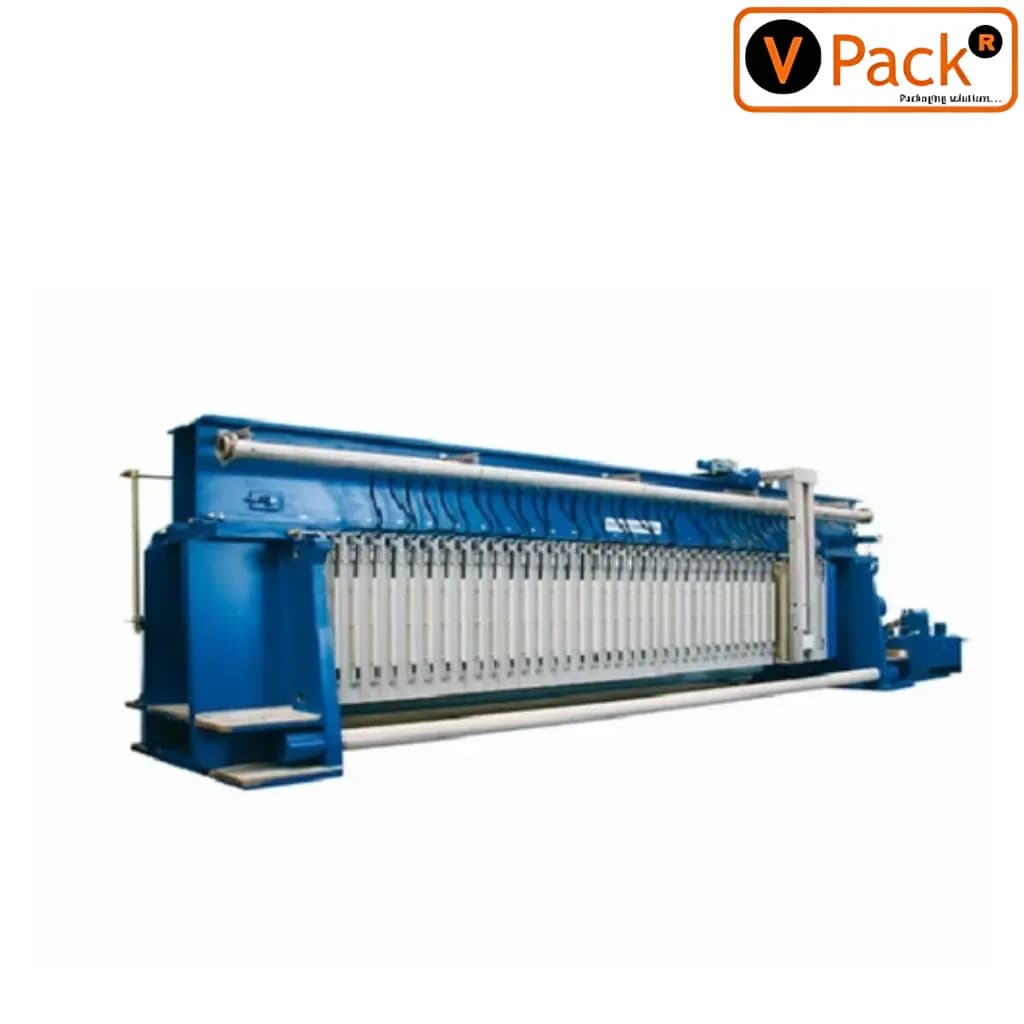

VPACK Filter Press
Precision Filtration
VPACK Filter Press
Your Industrial Filtration Powerhouse
The VPACK Filter Press is an industrial-grade filtration system that ensures consistent and thorough separation of solids and liquids. Whether you’re treating wastewater, purifying beverages, or filtering chemicals, this press is engineered to maximize output and minimize downtime.
With options to suit any industrial setup—from manual to fully automatic systems—this machine adapts to your process with ease, while ensuring high durability, pressure resistance, and low maintenance.
Filter Press – Efficient Solid-Liquid Separation
Description
Optimize your filtration process with VPACK’s advanced Filter Press, designed for effective solid-liquid separation across various industries. Whether you’re in pharmaceuticals, chemicals, or wastewater treatment, our Filter Press ensures high performance, durability, and ease of operation.
Product Highlights
- • Versatile Operation: Available in Hydraulic, Mechanical, Automatic, and Semi-Automatic models to suit diverse operational needs.
- • Robust Construction: Frames made from MS with Epoxy Coating or SS 304/316, ensuring longevity and resistance to corrosion.
- • Customizable Plate Options: Choose from Polypropylene (PP), Cast Iron, or SS316 filter plates, with sizes ranging from 470 x 470 mm to 1200 x 1200 mm.
- • High Filtration Capacity: Filter area from 1 m² to 100 m², accommodating cake holding capacities between 10 L to 1500 L.
- • Efficient Filtration: Operating pressures of 4–7 bar (up to 15 bar for high-pressure models) and filtration cycle times between 30 minutes to 2 hours.
Technical Specifications
- • Machine Type: Hydraulic / Mechanical / Automatic / Semi-Automatic
- • Ideal For: Solid-liquid separation across industrial applications
- • Frame Construction: Mild Steel with Epoxy Coating or SS304/316
- • Filter Plates: Available in PP, Cast Iron, or SS316
- • Plate Sizes: From compact 470 mm to large 1200 mm square
- • Filtration Area: Customizable from 1 m² to 100 m²
- • Cake Capacity: Ranges from 10 to 1500 Liters
- • Filter Cloth Options: PP, Nylon, Cotton (Food & Chemical Grades)
- • Pressure Range: 4–7 bar (up to 15 bar for specific models)
- • Pumps: Centrifugal / Diaphragm-based Slurry or Mud Pumps
- • Pump Materials: Stainless Steel, Cast Iron, or Polypropylene
- • Cycle Duration: 30 minutes to 2 hours depending on slurry
- • Cake Moisture Level: ~25–35%
- • Hydraulic Mechanism: Manual or Motor Driven
- • Optional Controls: PLC / HMI for automation
- • Filtration Media: Supports Cloth, Paper, or Membrane Filters
- • Slurry Pressure Input: 3–5 kg/cm²
- • Discharge Design: Open or Closed (Drip Tray / Spout Type)
- • Finish: Industrial-grade epoxy or GMP-compliant SS finish
- • Safety Systems: Emergency Stop, Pressure Relief, Limit Switch
- • Setup Space Needed: Starting from 6 ft x 4 ft
- • Power Needs: 2 to 7 HP based on model
- • Unit Weight: 500 to 3000+ kg
- • Custom-Built Options: Available on request
- • Industries Served: Water, Beverage, Pharma, Chemical, Textile, Edible Oil
- • Warranty & Origin: 1 Year | Proudly Made in India
Ideal For
- • Water Treatment Plants: Efficient removal of solids from wastewater.
- • Beverage Industry: Clarification of juices and other beverages.
- • Chemical Manufacturing: Separation of solids from chemical solutions.
- • Pharmaceuticals: Purification processes requiring high hygiene standards.
- • Edible Oil Processing: Removal of impurities to ensure oil quality.
- • Textile Industry: Treatment of dye and chemical-laden effluents.
Ready to Enhance Your Filtration Process?
Upgrade to VPACK’s Filter Press for reliable, efficient, and customizable filtration solutions. Contact us today to discuss your specific requirements and get a tailored solution.
Boost Your Production with Confidence
Our machines combine innovation, efficiency, and reliability — giving your operations the edge they need. Trusted by numerous clients, VPACK products are more than just machinery — they’re a promise of quality.
