HOMOGENIZER
⚙️ Homogenizer

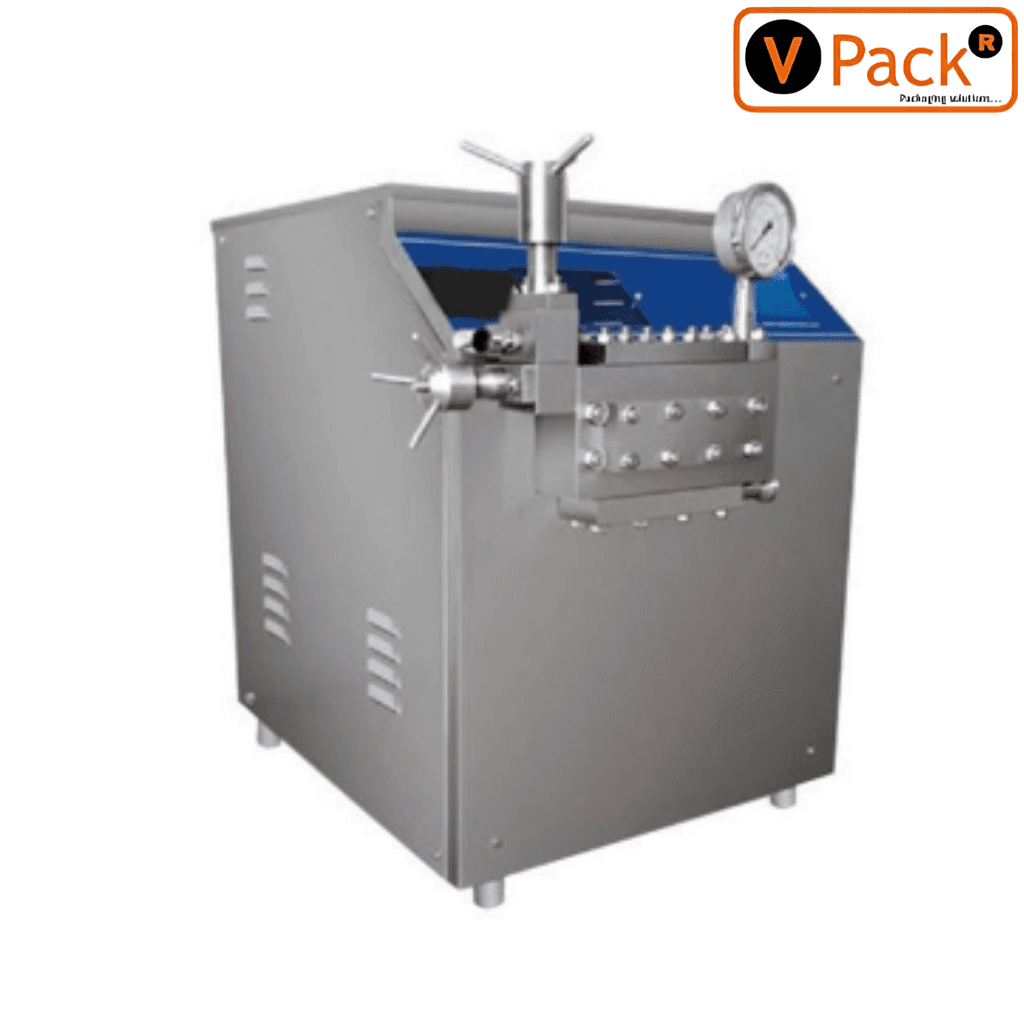

The Vpack Homogenizer is an automatic, high-efficiency solution designed for food processing industries. It delivers uniform product texture and stability with pressures exceeding 250 Bar and a flow range of 200 to 2000 LPH — perfect for dairy, beverages, and more.
High-Efficiency Food-Grade Homogenizer for Smooth, Consistent Output
Description
The Vpack Homogenizer is engineered to deliver high-pressure homogenization ideal for emulsifying, suspending, and blending in food and dairy processing. With a working range from 200 to 2000 LPH and operating at pressures over 250 Bar, it ensures consistent product texture and extended shelf life.
Its heart — the VP-40 LD plunger pump — includes three tungsten carbide-coated pistons (16 mm), ensuring longevity and wear resistance. With a rated efficiency of 90%, this system provides a fine product output between 2.5 to 3 microns in quality. Built from SS304 grade stainless steel, the liquid-end guarantees hygiene and corrosion resistance.
This model operates smoothly at 250 strokes per minute and delivers up to 1050 LPH at rated water pressure. The manually adjustable spring-loaded pressure valve, SS diaphragm-type pressure gauge (Waaree make), and L&T starter ensure safe and reliable performance.
It features high-grade internals such as EN24 nitrided crankshafts, SKF taper roller bearings, and a forged steel connecting rod — all lubricated via a splash system for low maintenance. The 2HP motor (from reputed brands like Siemens, CG, or Havells) ensures reliable operation, while the SS ball valve and 1" SMS unions make inlet/outlet integration seamless.
⚙️ Technical Specifications
Minimum Order Quantity: 1 Unit
Application: Food Processing
Brand: Vpack
Range: 200 to 2000 LPH
Pressure: >250 Bar
Capacity: 200 Litres/Hour
Automation Grade: Automatic
Power Source: 440 Volts
Phase: 3 Phase
Plunger Pump Model: VP-40 LD
Piston Diameter: 16 mm Super Finish Tungsten Carbide Coated
No. of Pistons: 3 Nos
Working Pressure: 160 Bar (2300 PSI)
Working Temp: 72°C to 80°C
Efficiency: 90.00%
Product Quality: 2.5 Micron to 3 Micron
Material of Construction (Liquid End): SS 304
Pump Speed: 250 SPM
Capacity at Rated Pressure: 1050 LPH in Water
Homogenizing Valve: High quality tungsten carbide valves (Primary & Secondary)
Pressure Adjusting Method: Spring Loaded Manual Type
Suction & Discharge Valves: Stainless Steel
Cream Inlet & Outlet: 1″ SMS Union
Power Required: 2 HP Motor, 960 RPM, 3 Phase (CG/Havells/Siemens make)
Motor Starter: L&T Starter
Drive: Belt Pulley Type
NRV Type: Ball Valve, 12 mm Dia
Pressure Gauge: Waaree Make SS Diaphragm Type, Sanitary Design
Crank Shaft: Solid EN 24 Bar, Nitrided
Cross Head: SS 410 (Hard Chrome Plated)
Crank Shaft Bearing: SKF Make Taper Roller
Connecting Rod: High Quality Forged Steel
Connecting Rod Bearing: Split Type Bi-Metallic
Lubricating System: Splash Type
⚙️ Performance Highlights:
Delivers consistent 2.5–3 micron product quality
Rated efficiency of 90%
Heavy-duty construction with SS304 and EN24 components
Pressure gauge and safety valves for optimal control
Smooth 250 SPM pump speed with high-capacity 1050 LPH output
🏭 Ideal For
Dairy plants
Juice and beverage manufacturers
Food emulsification processes
Pharmaceutical blending
Cosmetic and chemical applications
💡 Why Choose the Vpack Homogenizer?
Superior homogenizing with tungsten carbide valves
Durable components built for high-pressure operations
Custom-designed for food-grade safety
Compact, efficient, and low-maintenance system
Trusted motor and starter brands included
