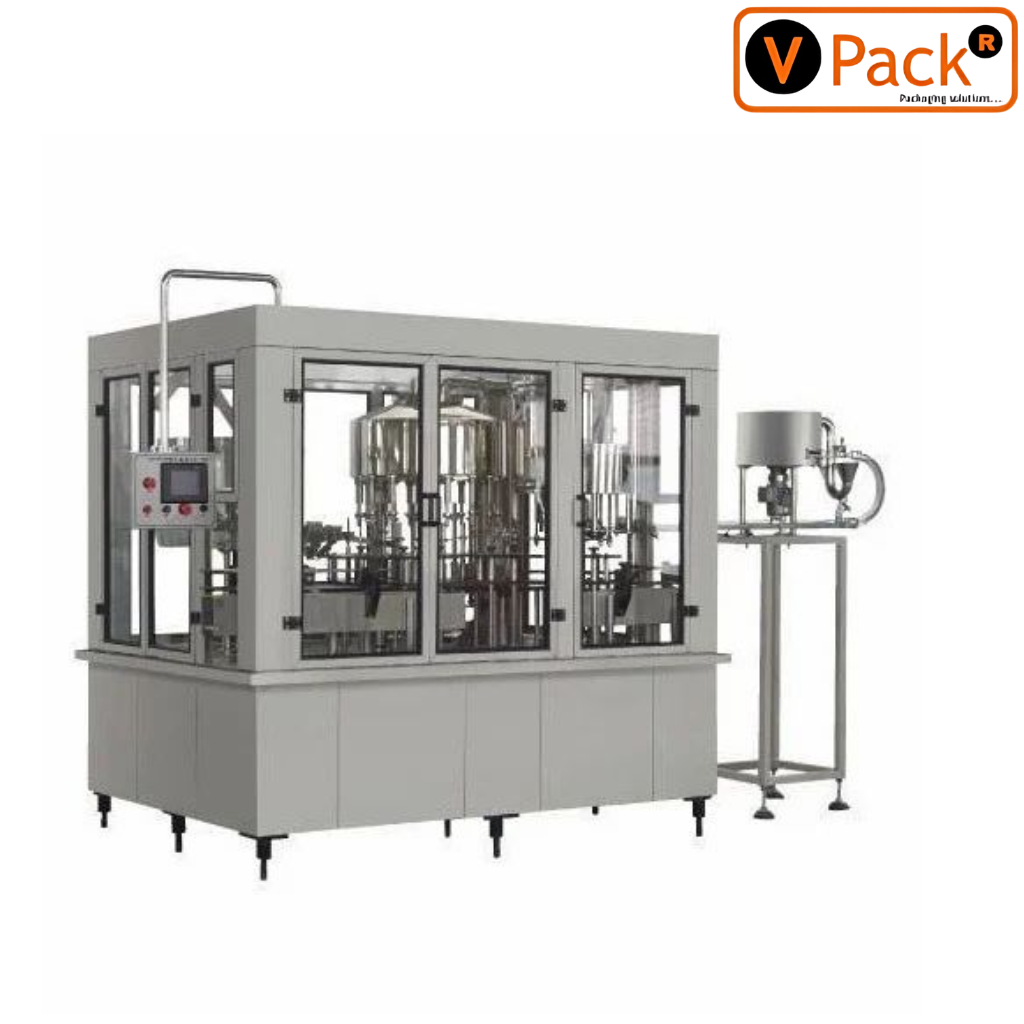

BOTTLE RFC MACHINE 30 BPM
High-Speed, Fully Automated Non-Carbonated Bottling
Engineered for medium-scale production, this machine features 6 rinsing heads, 6 filling heads, and 3 capping heads, all driven by premium Rotomotive/Crompton motors. With intelligent photoelectric sensors (Omron/Sick), an optional Delta/INVT control panel, and a robust 3 mm SS construction, it processes 30 bottles per minute at just ≈5 kW of power and 6–8 bar air pressure.
Call NowBOTTLE RFC MACHINE 30 BPM
The VPACK 30 BPM Bottle RFC Machine offers a compact, efficient solution by combining automatic rinsing, filling, and capping in one space-saving unit. Made from high-quality SS 304 / SS 316 stainless steel, it accommodates bottle sizes ranging from 200 ml to 2 liters with a filling accuracy of ±1%. This machine is ideal for hygienic, reliable packaging of water and juice, delivering high performance while maintaining a minimal footprint.
With the rising demand for safe and purified drinking water, establishing a modern bottling setup has become a profitable business opportunity. Selecting the right water bottling plant manufacturer is essential to ensure consistent quality, safety, and long-term operational efficiency. For businesses looking for a dependable solution in Delhi, investing in advanced machinery from a trusted water bottling plant manufacturer helps achieve higher productivity while meeting strict hygiene and industry standards.
Water Bottling Plant Manufacturer in Delhi for Small & Large Businesses
Delhi represents a high-consumption market for packaged drinking water, driven by strong demand from offices, hotels, hospitals, events, and residential areas. Therefore, a reliable water bottling plant manufacturer in Delhi must develop systems that ensure continuous production while adhering to stringent food safety and hygiene standards.
Solutions are available for different business scales, including:
- Small-scale bottling systems for startups
- Medium-capacity plants for local and regional brands
- Fully automated large-scale bottling solutions for high-volume production
This flexibility allows businesses to begin with a suitable capacity and gradually expand their production as market demand grows.
Technical Specifications
| Parameter | Specification |
|---|---|
| Capacity | 30 Bottles Per Minute (BPM) |
| Material Used | SS 304 / SS 316 |
| Filling Heads | 6 |
| Rinsing Heads | 6 |
| Capping Heads | 3 |
| Power Consumption | Approx. 5 kW |
| Air Consumption | 6 – 8 bar |
| Bottle Size Range | 200 ml to 2 liters |
| Nozzles | 6 Rinsing, 6 Filling, 3 Capping |
| Electrical Components | Delta, INVT, Crompton |
| Stainless Steel Thickness | 3 mm |
| Control Panel | Optional (10% extra of the original cost) – Delta / INVT |
| Voltage | 3-phase, 440V, 50 Hz |
| Filling Accuracy | ±1% |
| Conveyor System | Automatic |
| Sensor Type | Photoelectric (Omron / Sick) |
| Emergency Stop | Yes |
| Water Consumption (Rinsing) | 500 – 700 liters per hour |
| Water Consumption (Filling) | 1800 liters per hour |
| Motors Used | Rotomotive, Crompton, Ultravario |
| Motor Capacity | 1 HP (Conveyor), 2 HP (Main Filling System) |
| Dimensions (L × W × H) | 8 ft × 6 ft × 7 ft |
| Weight | Approx. 1200 kg |
| Customization Options | Available |
| Integration with Production Line | Yes |
| Warranty | 1 Year |
| Certification | ISO Certified |
| Delivery Time | 4 to 8 weeks from order |
| Operator Training | Provided |
| Spare Parts Availability | Yes |
| Lifespan | 10 – 15 years (with maintenance) |
| Installation & Commissioning | Provided |
| After-Sales Support | Available |
| Suitable for Carbonated Drinks | No (Only non-carbonated liquids) |
| Products That Can Be Filled | Water, Juice, Non-carbonated beverages |
| Manpower Required | 1 Skilled Operator + 1 Helper |
Ideal Choice for Non-Carbonated Beverage Producers
This machine is specifically designed for non-carbonated liquids and is not suitable for carbonated drinks. It is an excellent solution for manufacturers of bottled water, fruit juices, and other still beverages. Only one skilled operator and one helper are required to run the system efficiently, helping reduce labor costs while maintaining high productivity.
Backed by ISO certification, one-year warranty, and reliable after-sales support, Vpack Machine ensures complete customer satisfaction and long-term performance reliability.
As a dependable Water Bottling Plant Manufacturer, Vpack Machine focuses on delivering quality, precision, and efficiency to help businesses grow in a competitive beverage market.
Ready to Transform Your Bottling Line?
Contact Vpack Machine today for custom quotes, technical consultations, and expert guidance.
